Comino grando
container
Universal
mobile
data
center
for liquid cooled
solutions
Comino Grando Container facts
-
140 Grando U Blocks
Can host up to 14 Grando Racks
(140 Grando U Blocks, 2240 GPU or FPGA) or any other Liquid Cooled systems -
-30° +50° C
The container can operate
in the environment with outdoor temperatures ranging from
-30° to +50° C (-22° to 122° F) -
500 kW
Total power
is up to 500 kW
The container allows you to ensure the fastest possible deployment of the data-center. The project for the container has been completed and the product is available to customer immediately after the contract is agreed upon. The container is delivered as a finished product with the main components of the systems being pre-installed during the production process, tested and configured.
Unlimited scalability and the ability to merge units into
a single machine for ease of maintenance (optional).
You have an opportunity to obtain
Universal mobile data center
as finished product ready for use

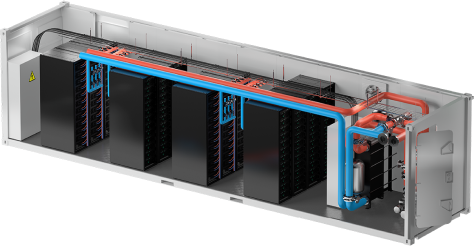

External Coolant Circuit
Internal Coolant Circuit
Automation panel
Ventilation
19" 48U Racks
Connection of the Freecooler or recuperation
Heat Exchanger
Power distribution switchboard
Connection of the 4x 250A electrical cables
Watch video
to see how it works
Technical
specifications
Rack equipment
- 13x Comino 19” 48U racks
with liquid cooling manifolds - Up to 36 kW electrical and cooling power per rack
Pipeline layout
Two circuits:
- Internal — distilled water with
anti-corrosion additives. - External — 40% propylene glycol mixture (up to -25°C outside T, can
be adapted to suit region).
Both circuits are equipped with maintainable coolant filters.
Pumps
Nominal operation mode
of the internal circuit:
of the external circuit:
of the internal circuit:
- T(in) = +45°C
- T(out) = +52°C
- V(h) = 57.16 m3/h
of the external circuit:
- T(in) = +43°C
- T(out) = +48°C
- V(h) = 87.13 m3/h
Coolant (liquid-liquid)
heat exchanger thermal load
- 405,000 kcal/h (471 kW)
Switchboard equipment
- 4 cable inputs 250A each
- 500 kW power distribution switchboards
- 7 kW electrical panel for various purposes
Security systems
- Entry control, fire alarm, CCTV
Structured Cabling System
- 5e cable system, cable tray
Local Area Network
- 4x 48-port gigabit switches
Lighting
- Work area and evacuation lighting
Air Ventilation
- Up to 40,000 m3/h (filtered air)
Automation system
- Thermal Monitoring
- Liquid-cooling 2-circuit automatic control (pumps, fans, valves)
- Emergency algorithms
Standard 40 ft HQ container
- W: 12.192 m | L: 2.438 m | H: 2.896 m
- Maximum gross weight: 16 tons
Recuperation
system
Freecooler
Comino Grando
Container
Building with
Grando Heating
Capex will cover you
for years
to come
15
years
The system can be divided into infrastructure and copper plates alongside FPGA. One of our most important advantages is that the entire engineering infrastructure of the product can work and serve you for as much as 15 years (during regular maintenance). Thus, our system is most effective for long-term capital investments in your business. In case an upgrade to the FPGA cards is needed, you will simply change the copper cooling component. But the infrastructure will remain in serve for many generations of FPGA.
